74LVQ86SJ

In Stock: 1,928

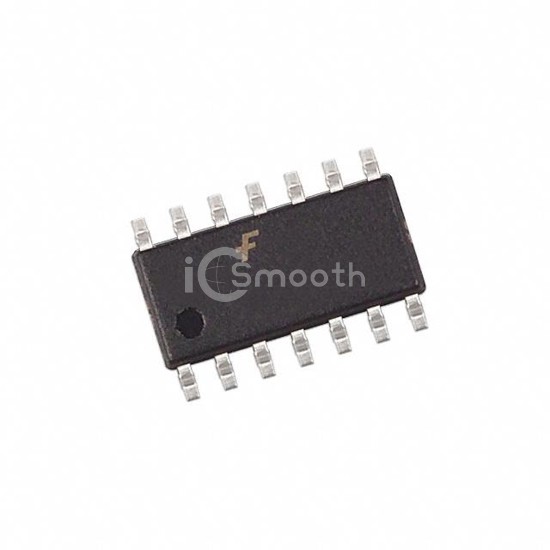

74LVQ86SJ - onsemi - Logic - Gates and Inverters
REF: 74LVQ86SJ onsemi
74LVQ86SJ

onsemi

IC GATE XOR 4CH 2-INP 14SOP

74LVQ86SJ is a Logic - Gates and Inverters manufactured by onsemi. IC GATE XOR 4CH 2-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 1,928

Specifications

15 parameters
Product StatusObsolete
Logic TypeXOR (Exclusive OR)
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Max)2 µA
Current - Output High, Low12mA, 12mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL11.5ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
