74LVQ02SJX

In Stock: 4,611

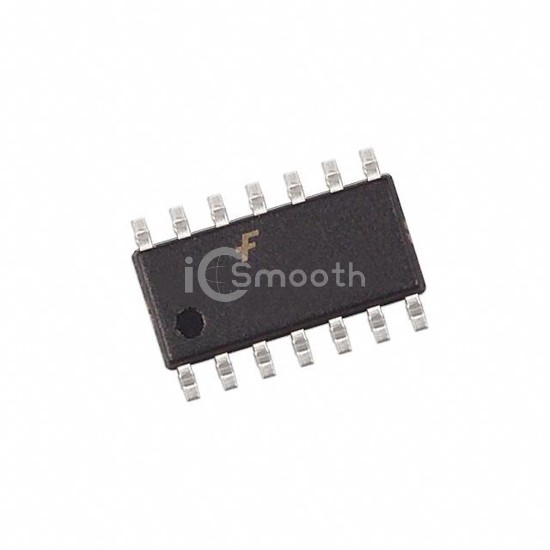

74LVQ02SJX - onsemi - Logic - Gates and Inverters
REF: 74LVQ02SJX onsemi
74LVQ02SJX

onsemi

IC GATE NOR 4CH 2-INP 14SOP

74LVQ02SJX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NOR 4CH 2-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 4,611

Tiered Pricing USD
2,000+ $0.3357 —
4,000+ $0.3083 -8%
6,000+ $0.2944 -12%
10,000+ $0.2788 -17%
14,000+ $0.2750 -18% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeNOR Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Max)2 µA
Current - Output High, Low12mA, 12mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL7.5ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
