74LCX32BQX

In Stock: 1,179

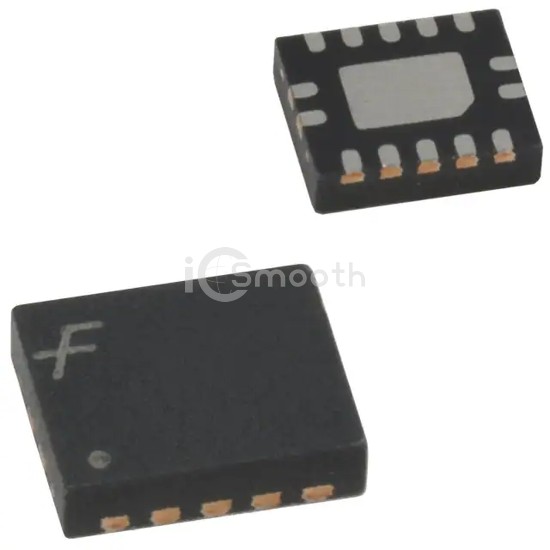

74LCX32BQX - onsemi - Logic - Gates and Inverters
REF: 74LCX32BQX onsemi
74LCX32BQX

onsemi

IC GATE OR 4CH 2-INP 14DQFN

74LCX32BQX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE OR 4CH 2-INP 14DQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,179

Tiered Pricing USD
1+ $0.4800 —
10+ $0.3390 -29%
25+ $0.3028 -37%
100+ $0.2628 -45%
250+ $0.2438 -49%
500+ $0.2323 -52%
1,000+ $0.2245 -53% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeOR Gate
Number of Circuits4
Number of Inputs2
Features-
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Max)10 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL5.5ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-DQFN (3x2.5)
Package / Case14-VFQFN Exposed Pad
