74LCX14BQX

In Stock: 2,825
74LCX14BQX - onsemi - Logic - Gates and Inverters
REF: 74LCX14BQX onsemi

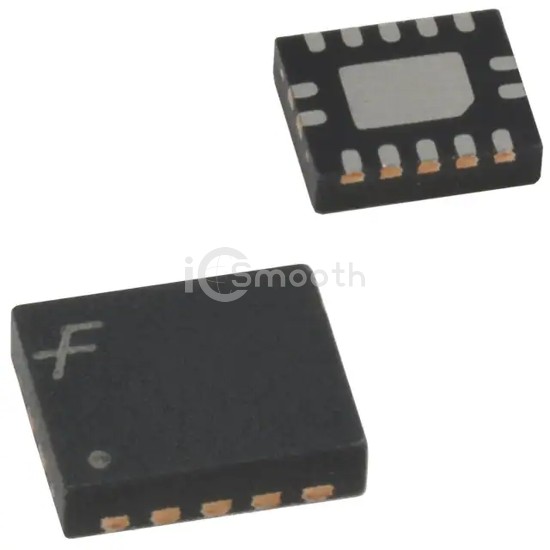

74LCX14BQX

onsemi

IC INV SCHMITT 6CH 1-IN 14DQFN

74LCX14BQX is a Logic - Gates and Inverters manufactured by onsemi. IC INV SCHMITT 6CH 1-IN 14DQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,825

Tiered Pricing USD
1+ $0.4800 —
10+ $0.3340 -30%
25+ $0.2980 -38%
100+ $0.2586 -46%
250+ $0.2398 -50%
500+ $0.2285 -52%
1,000+ $0.2206 -54% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
FeaturesSchmitt Trigger
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Max)10 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.4V ~ 0.6V
Logic Level - High1.7V ~ 2.2V
Max Propagation Delay @ V, Max CL6.5ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-DQFN (3x2.5)
Package / Case14-VFQFN Exposed Pad
