74LCX10SJX

In Stock: 4,775

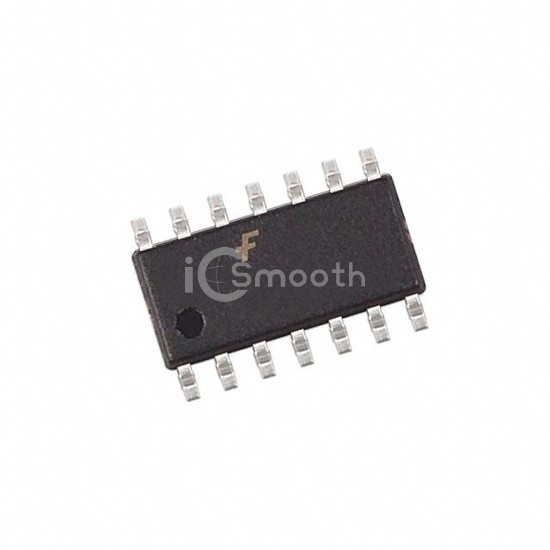

74LCX10SJX - onsemi - Logic - Gates and Inverters
REF: 74LCX10SJX onsemi
74LCX10SJX

onsemi

IC GATE NAND 3CH 3-INP 14SOP

74LCX10SJX is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 3CH 3-INP 14SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 3.6V, package / case 14-SOIC (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 4,775

Tiered Pricing USD
2,000+ $0.2092 —
4,000+ $0.1904 -9%
6,000+ $0.1808 -14%
10,000+ $0.1701 -19%
14,000+ $0.1638 -22%
20,000+ $0.1576 -25%
50,000+ $0.1536 -27% BEST

Specifications

15 parameters
Product StatusObsolete
Logic TypeNAND Gate
Number of Circuits3
Number of Inputs3
Features-
Voltage - Supply2.3V ~ 3.6V
Current - Quiescent (Max)10 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL4.9ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-SOP
Package / Case14-SOIC (0.209", 5.30mm Width)
