74LCX04BQX

In Stock: 7,558

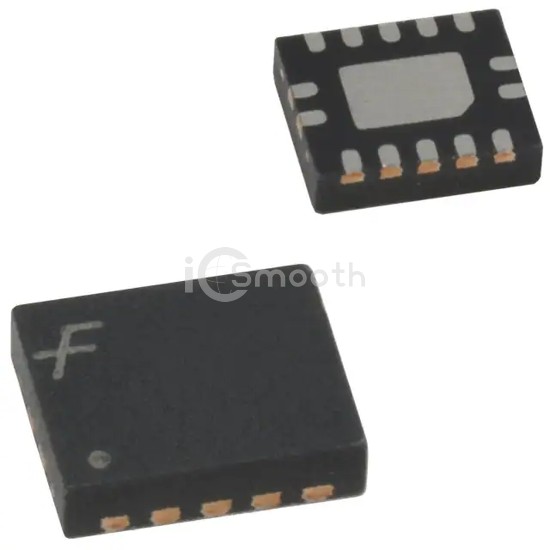

74LCX04BQX - onsemi - Logic - Gates and Inverters
REF: 74LCX04BQX onsemi
74LCX04BQX

onsemi

IC INVERTER 6CH 1-INP 14DQFN

74LCX04BQX is a Logic - Gates and Inverters manufactured by onsemi. IC INVERTER 6CH 1-INP 14DQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 3.6V, package / case 14-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,558

Tiered Pricing USD
1+ $0.4400 —
10+ $0.3110 -29%
25+ $0.2772 -37%
100+ $0.2402 -45%
250+ $0.2226 -49%
500+ $0.2120 -52%
1,000+ $0.2040 -54% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeInverter
Number of Circuits6
Number of Inputs1
Features-
Voltage - Supply2V ~ 3.6V
Current - Quiescent (Max)10 µA
Current - Output High, Low24mA, 24mA
Logic Level - Low0.7V ~ 0.8V
Logic Level - High1.7V ~ 2V
Max Propagation Delay @ V, Max CL5.2ns @ 3.3V, 50pF
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Supplier Device Package14-DQFN (3x2.5)
Package / Case14-VFQFN Exposed Pad
