6N138SDM

In Stock: 8,980

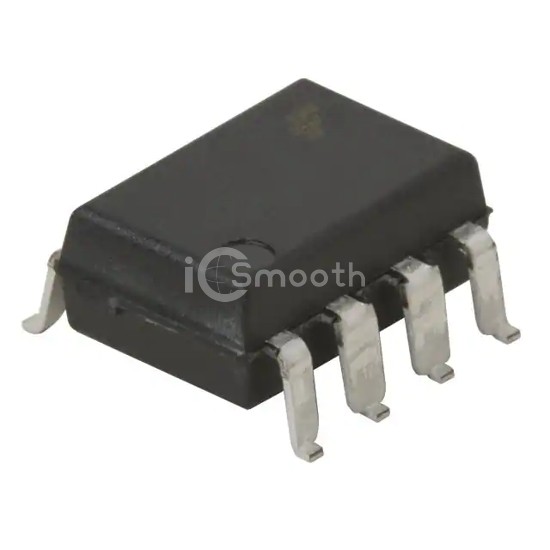

6N138SDM - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: 6N138SDM onsemi
6N138SDM

onsemi

OPTOISO 5KV DARL W/BASE 8SMD

6N138SDM is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 5KV DARL W/BASE 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.3V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 8,980

Tiered Pricing USD
1+ $1.8600 —
10+ $1.3290 -29%
100+ $1.0103 -46%
500+ $0.8696 -53% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)300% @ 1.6mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)1µs, 7.3µs
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)7V
Current - Output / Channel60mA
Voltage - Forward (Vf) (Typ)1.3V
Current - DC Forward (If) (Max)20 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
