6N136SDVM

In Stock: 9,090
6N136SDVM - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: 6N136SDVM onsemi
6N136SDVM

onsemi

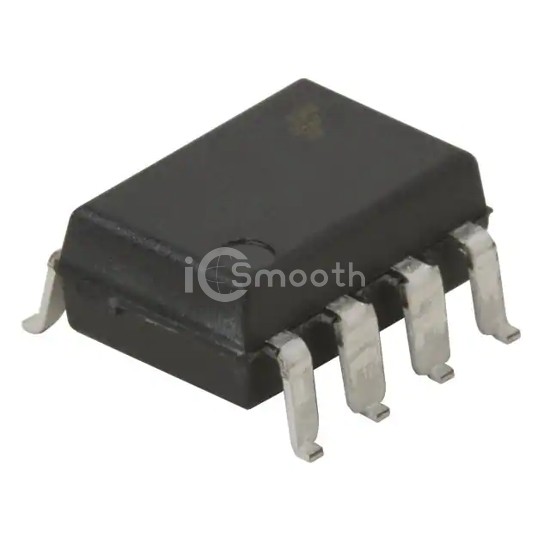

OPTOISO 5KV TRANS W/BASE 8SMD

6N136SDVM is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 5KV TRANS W/BASE 8SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,090

Tiered Pricing USD
1+ $1.8500 —
10+ $1.3210 -29%
100+ $1.0038 -46%
500+ $0.8637 -53% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)19% @ 16mA
Current Transfer Ratio (Max)50% @ 16mA
Turn On / Turn Off Time (Typ)250ns, 260ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
