6N135SV

In Stock: 7,879
6N135SV - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: 6N135SV onsemi
6N135SV

onsemi

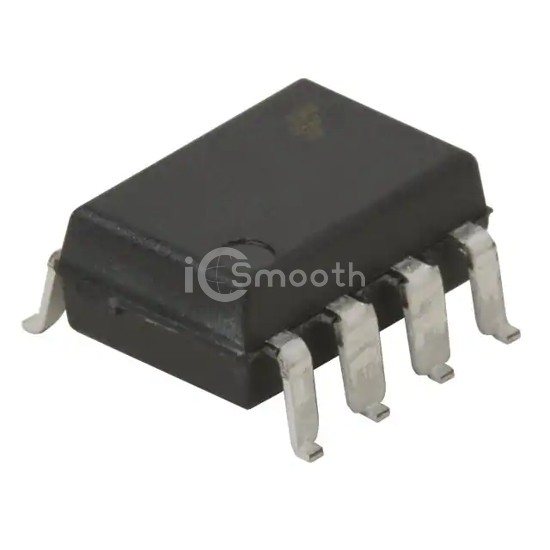

OPTOISO 2.5KV TRANS W/BASE 8SMD

6N135SV is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 2.5KV TRANS W/BASE 8SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 8-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 7,879

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation2500Vrms
Current Transfer Ratio (Min)7% @ 16mA
Current Transfer Ratio (Max)50% @ 16mA
Turn On / Turn Off Time (Typ)450ns, 500ns
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeTransistor with Base
Voltage - Output (Max)20V
Current - Output / Channel8mA
Voltage - Forward (Vf) (Typ)1.45V
Current - DC Forward (If) (Max)25 mA
Vce Saturation (Max)-
Operating Temperature-55°C ~ 100°C
Mounting TypeSurface Mount
Package / Case8-SMD, Gull Wing
Supplier Device Package8-SMD
