5LN01SP-AC

In Stock: 2,038

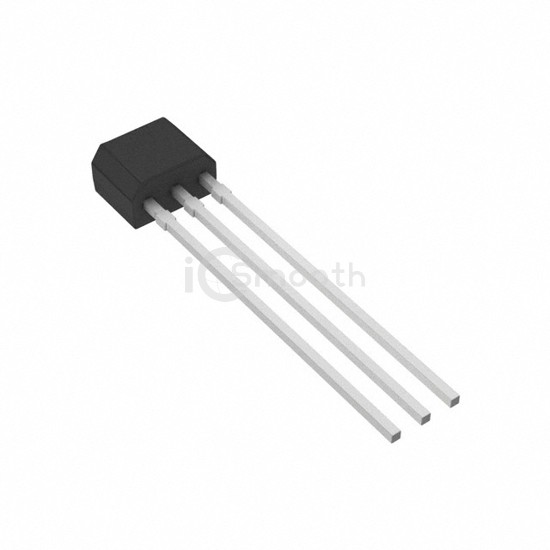

5LN01SP-AC - onsemi - Transistors - FETs, MOSFETs - Single
REF: 5LN01SP-AC onsemi
5LN01SP-AC

onsemi

MOSFET N-CH 50V 100MA 3SPA

5LN01SP-AC is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 50V 100MA 3SPA. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case SC-72.

Datasheet Request a Quote

In Stock: 2,038

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)50 V
Current - Continuous Drain (Id) @ 25°C100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4V
Rds On (Max) @ Id, Vgs7.8Ohm @ 50mA, 4V
Vgs(th) (Max) @ Id1.3V @ 100µA
Gate Charge (Qg) (Max) @ Vgs1.57 nC @ 10 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds6.6 pF @ 10 V
FET Feature-
Power Dissipation (Max)250mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device Package3-SPA
Package / CaseSC-72
