55GN01FA-TL-H

In Stock: 5,752

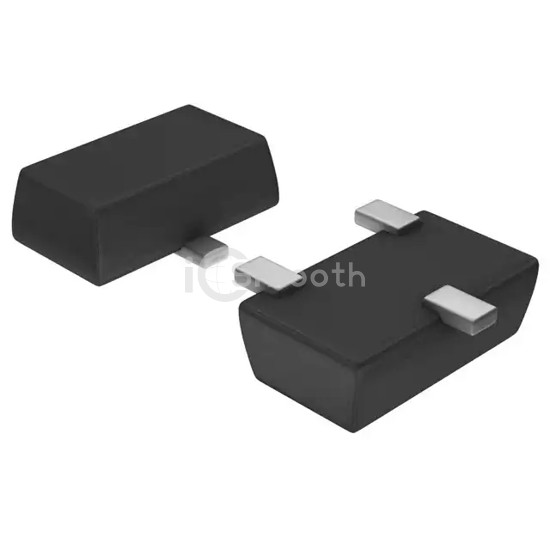

55GN01FA-TL-H - onsemi - Transistors - Bipolar (BJT) - RF
REF: 55GN01FA-TL-H onsemi
55GN01FA-TL-H

onsemi

RF TRANS NPN 10V 5.5GHZ 3SSFP

55GN01FA-TL-H is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 10V 5.5GHZ 3SSFP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-81, current - collector (ic) (max) 70mA.

Datasheet Request a Quote

In Stock: 5,752

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)10V
Frequency - Transition4.5GHz ~ 5.5GHz
Noise Figure (dB Typ @ f)1.9dB @ 1GHz
Gain11dB ~ 19dB @ 1GHz ~ 400MHz
Power - Max250mW
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 5V
Current - Collector (Ic) (Max)70mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-81
Supplier Device Package3-SSFP
