4N29SR2M

In Stock: 6,637
4N29SR2M - onsemi - Optoisolators - Transistor, Photovoltaic Output
REF: 4N29SR2M onsemi
4N29SR2M

onsemi

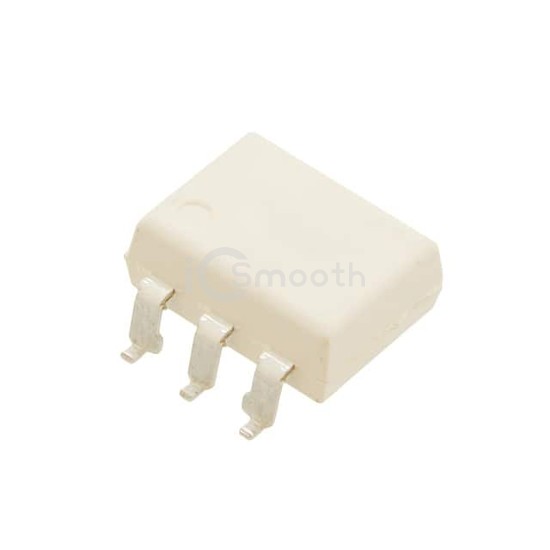

OPTOISO 4.17KV DARL W/BASE 6SMD

4N29SR2M is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 4.17KV DARL W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 6,637

Tiered Pricing USD
1+ $0.9600 —
10+ $0.6690 -30%
100+ $0.4933 -49%
500+ $0.4150 -57% BEST

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation4170Vrms
Current Transfer Ratio (Min)100% @ 10mA
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)5µs, 40µs (Max)
Rise / Fall Time (Typ)-
Input TypeDC
Output TypeDarlington with Base
Voltage - Output (Max)30V
Current - Output / Channel150mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)80 mA
Vce Saturation (Max)1V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD, Gull Wing
Supplier Device Package6-SMD
