Name: 4N29SM
Brand: onsemi
SKU: 4N29SM
Price: 0.71 USD
Availability: InStock

REF: 4N29SM onsemi

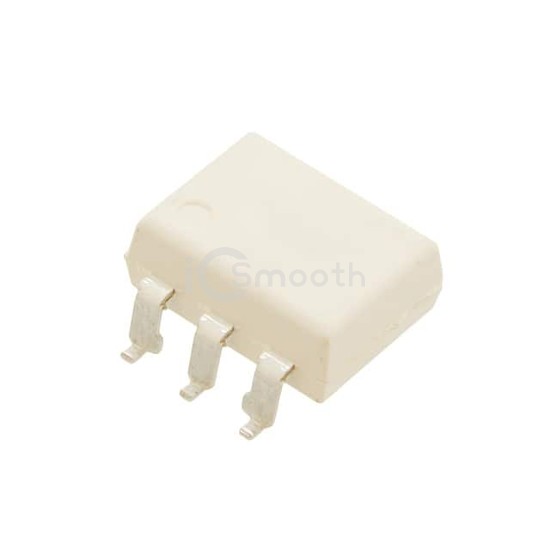

4N29SM

OPTOISO 4.17KV DARL W/BASE 6SMD

4N29SM is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 4.17KV DARL W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 150

Tiered Pricing USD

1+ $0.7100 —

65+ $0.3774 -47%

130+ $0.3459 -51%

520+ $0.2962 -58%

1,040+ $0.2767 -61%

2,015+ $0.2609 -63%

5,005+ $0.2428 -66%

10,010+ $0.2314 -67%

25,025+ $0.2190 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 40µs (Max)
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base

Voltage - Output (Max)	30V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	80 mA
Vce Saturation (Max)	1V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
