Name: 4N27SM
Brand: onsemi
SKU: 4N27SM
Price: 0.65 USD
Availability: InStock

REF: 4N27SM onsemi

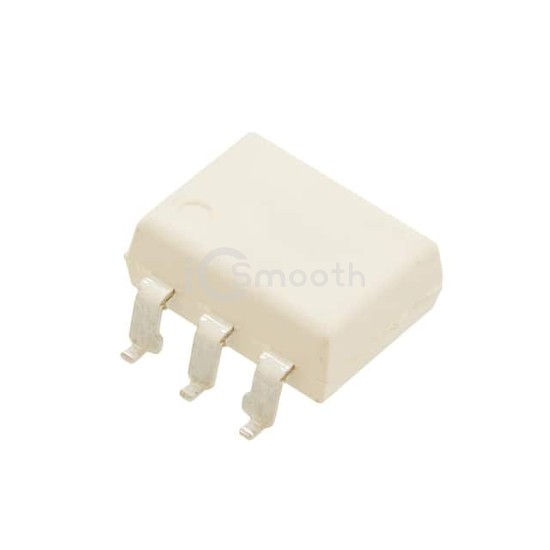

4N27SM

OPTOISO 4.17KV TRANS W/BASE 6SMD

4N27SM is a Optoisolators - Transistor, Photovoltaic Output manufactured by onsemi. OPTOISO 4.17KV TRANS W/BASE 6SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, voltage - forward (vf) (typ) 1.18V, package / case 6-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 78

Tiered Pricing USD

1+ $0.6500 —

50+ $0.3580 -45%

100+ $0.3270 -50%

500+ $0.2714 -58%

1,000+ $0.2532 -61%

2,000+ $0.2377 -63%

5,000+ $0.2207 -66%

10,000+ $0.2101 -68%

25,000+ $0.1986 -69% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	10% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	2µs, 2µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor with Base

Voltage - Output (Max)	30V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.18V
Current - DC Forward (If) (Max)	60 mA
Vce Saturation (Max)	500mV
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Supplier Device Package	6-SMD
