3MN03SF-TL-E

In Stock: 192,000

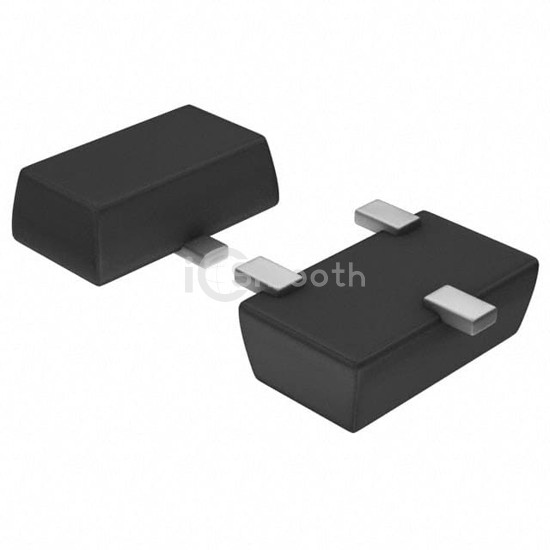

3MN03SF-TL-E - onsemi - Transistors - Bipolar (BJT) - RF
REF: 3MN03SF-TL-E onsemi
3MN03SF-TL-E

onsemi

BIP NPN 30MA 20V

3MN03SF-TL-E is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. BIP NPN 30MA 20V. Key specifications: mounting type Surface Mount, package / case 3-SMD, Flat Lead, current - collector (ic) (max) 30mA, power - max 150mW.

Request a Quote

In Stock: 192,000

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)20V
Frequency - Transition320MHz
Noise Figure (dB Typ @ f)3dB @ 100MHz
Gain-
Power - Max150mW
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 1mA, 6V
Current - Collector (Ic) (Max)30mA
Operating Temperature-
Mounting TypeSurface Mount
Package / Case3-SMD, Flat Lead
Supplier Device Package3-SSFP
