2SK715U

In Stock: 19,911

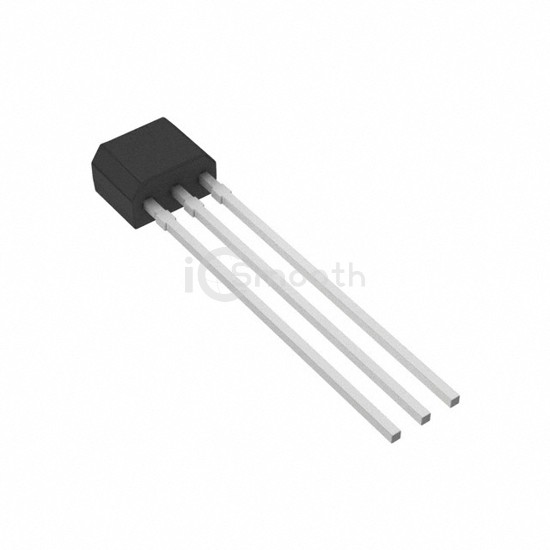

2SK715U - onsemi - Transistors - JFETs
REF: 2SK715U onsemi
2SK715U

onsemi

JFET N-CH 50MA 300MW SPA

2SK715U is a Transistors - JFETs manufactured by onsemi. JFET N-CH 50MA 300MW SPA. Key specifications: mounting type Through Hole, operating temperature 125°C (TJ), package / case SC-72, power - max 300 mW.

Datasheet Request a Quote

In Stock: 19,911

Specifications

14 parameters
Product StatusObsolete
FET TypeN-Channel
Voltage - Breakdown (V(BR)GSS)-
Drain to Source Voltage (Vdss)15 V
Current - Drain (Idss) @ Vds (Vgs=0)7.3 mA @ 5 V
Current Drain (Id) - Max50 mA
Voltage - Cutoff (VGS off) @ Id600 mV @ 100 µA
Input Capacitance (Ciss) (Max) @ Vds10pF @ 5V
Resistance - RDS(On)-
Power - Max300 mW
Operating Temperature125°C (TJ)
Mounting TypeThrough Hole
Package / CaseSC-72
Supplier Device Package3-SPA
