Name: 2SK4198FS
Brand: onsemi
SKU: 2SK4198FS
Price: 0.63 USD
Availability: InStock

REF: 2SK4198FS onsemi

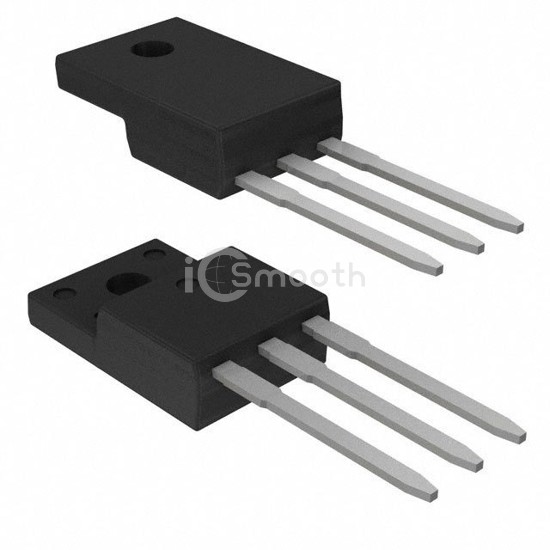

2SK4198FS

MOSFET N-CH 600V 4A TO220-3

2SK4198FS is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 600V 4A TO220-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 56,300

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.34Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	14.3 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	360 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 30W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
