Name: 2SK4197FS
Brand: onsemi
SKU: 2SK4197FS
Price: 0.57 USD
Availability: InStock

REF: 2SK4197FS onsemi

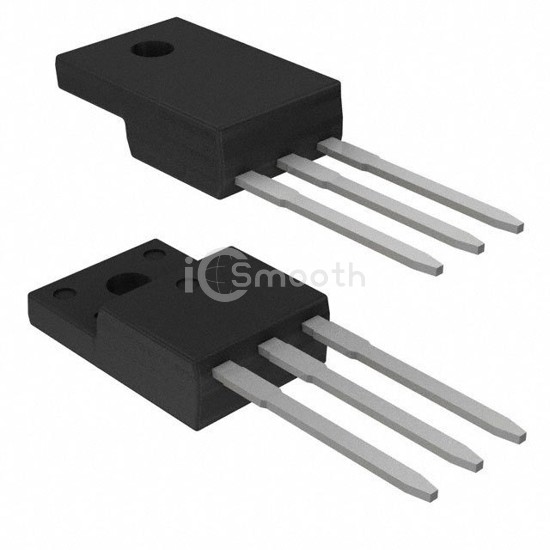

2SK4197FS

MOSFET N-CH 600V 3.3A TO220-3

2SK4197FS is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 600V 3.3A TO220-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 59,238

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	3.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.25Ohm @ 1.8A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	11 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	260 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 28W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
