2SK4066-E

In Stock: 3,751

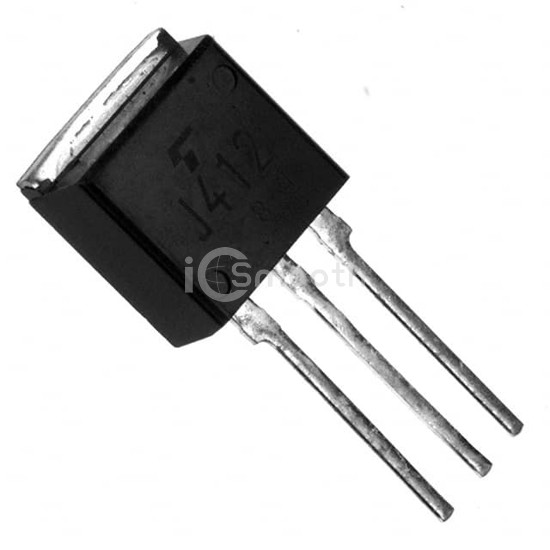

2SK4066-E - onsemi - Transistors - FETs, MOSFETs - Single
REF: 2SK4066-E onsemi
2SK4066-E

onsemi

MOSFET N-CH 60V 100A SMP

2SK4066-E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 100A SMP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3, Short Tab.

Request a Quote

In Stock: 3,751

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs4.7mOhm @ 50A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs220 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds12500 pF @ 20 V
FET Feature-
Power Dissipation (Max)1.65W (Ta), 90W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageSMP
Package / CaseTO-220-3, Short Tab
