Name: 2SK4065-DL-1EX
Brand: onsemi
SKU: 2SK4065-DL-1EX
Price: 2.24 USD
Availability: InStock

REF: 2SK4065-DL-1EX onsemi

2SK4065-DL-1EX

2SK4065 - MOSFET N-CHANNEL 75V T

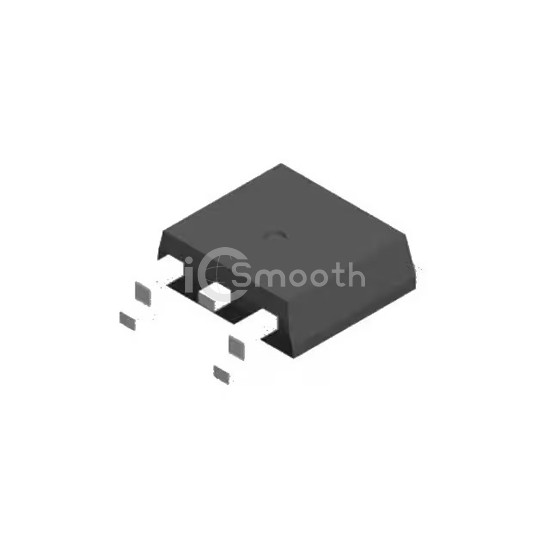

2SK4065-DL-1EX is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. 2SK4065 - MOSFET N-CHANNEL 75V T. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.

Datasheet Request a Quote

In Stock: 3,140

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	75 V
Current - Continuous Drain (Id) @ 25°C	100A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	6mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	220 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	12200 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	1.65W (Ta), 90W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263-2
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
