2SK3748-1E

In Stock: 7,205

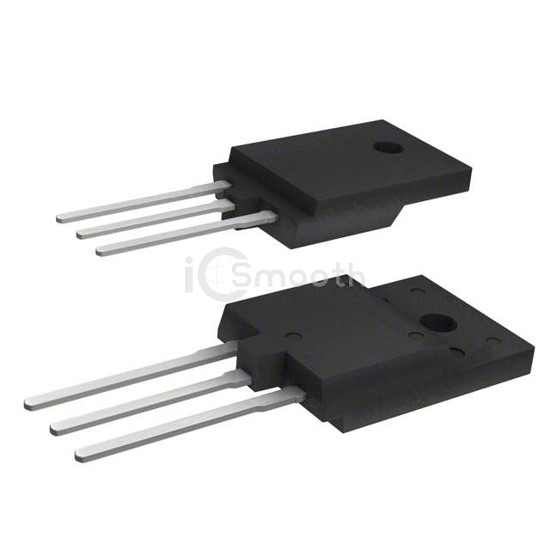

2SK3748-1E - onsemi - Transistors - FETs, MOSFETs - Single
REF: 2SK3748-1E onsemi
2SK3748-1E

onsemi

MOSFET N-CH 1500V 4A TO3PF-3

2SK3748-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 1500V 4A TO3PF-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case SC-94.

Datasheet Request a Quote

In Stock: 7,205

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1500 V
Current - Continuous Drain (Id) @ 25°C4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs7Ohm @ 2A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds790 pF @ 30 V
FET Feature-
Power Dissipation (Max)3W (Ta), 65W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PF-3
Package / CaseSC-94
