Name: 2SK3748
Brand: onsemi
SKU: 2SK3748
Availability: InStock

REF: 2SK3748 onsemi

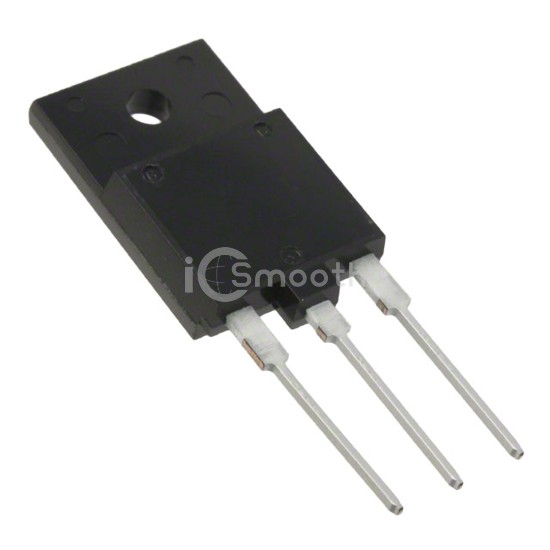

2SK3748

MOSFET N-CH 1500V 4A TO3PML

2SK3748 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 1500V 4A TO3PML. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3 Full Pack.

Datasheet Request a Quote

In Stock: 6,509

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1500 V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7Ohm @ 2A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	790 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 65W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PML
Package / Case	TO-3P-3 Full Pack
