2SK3747-1E

In Stock: 5,168

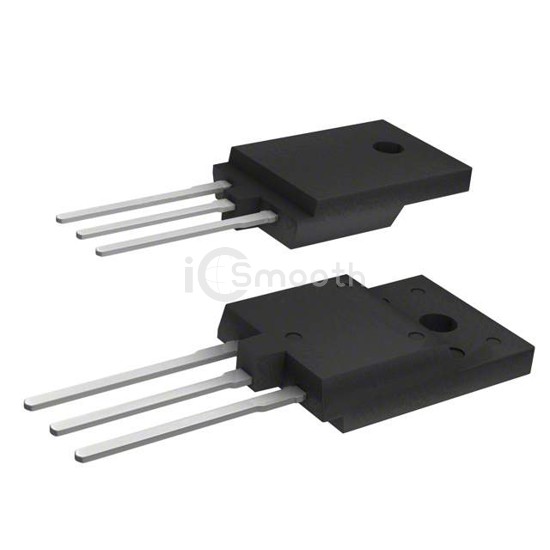

2SK3747-1E - onsemi - Transistors - FETs, MOSFETs - Single
REF: 2SK3747-1E onsemi
2SK3747-1E

onsemi

MOSFET N-CH 1500V 2A TO3PF-3

2SK3747-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 1500V 2A TO3PF-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case SC-94.

Datasheet Request a Quote

In Stock: 5,168

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1500 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs13Ohm @ 1A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs37.5 nC @ 10 V
Vgs (Max)±35V
Input Capacitance (Ciss) (Max) @ Vds380 pF @ 30 V
FET Feature-
Power Dissipation (Max)3W (Ta), 50W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3PF-3
Package / CaseSC-94
