Name: 2SK3747
Brand: onsemi
SKU: 2SK3747
Availability: InStock

REF: 2SK3747 onsemi

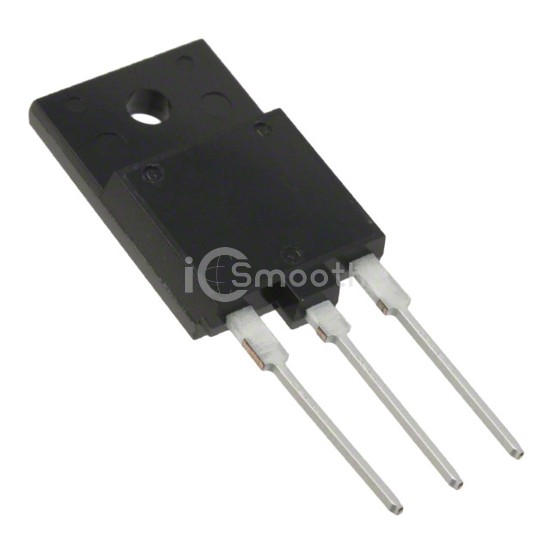

2SK3747

MOSFET N-CH 1500V 2A TO3PML

2SK3747 is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 1500V 2A TO3PML. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3 Full Pack.

Datasheet Request a Quote

In Stock: 1,500

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1500 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	13Ohm @ 1A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	37.5 nC @ 10 V

Vgs (Max)	±35V
Input Capacitance (Ciss) (Max) @ Vds	380 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 50W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3PML
Package / Case	TO-3P-3 Full Pack
