2SK3745LS-1E

In Stock: 1,085

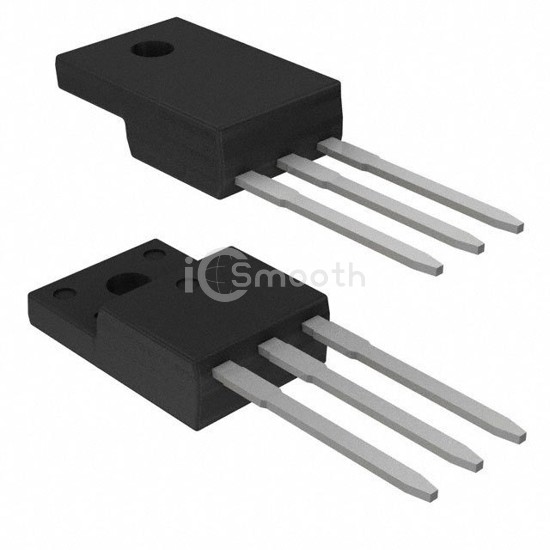

2SK3745LS-1E - onsemi - Transistors - FETs, MOSFETs - Single
REF: 2SK3745LS-1E onsemi
2SK3745LS-1E

onsemi

MOSFET N-CH 1500V 2A TO220F-3FS

2SK3745LS-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 1500V 2A TO220F-3FS. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 1,085

Specifications

17 parameters
Product StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)1500 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs13Ohm @ 1A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs37.5 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds380 pF @ 30 V
FET Feature-
Power Dissipation (Max)2W (Ta), 35W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F-3FS
Package / CaseTO-220-3 Full Pack
