2SK1069-5-TL-E

In Stock: 24,000

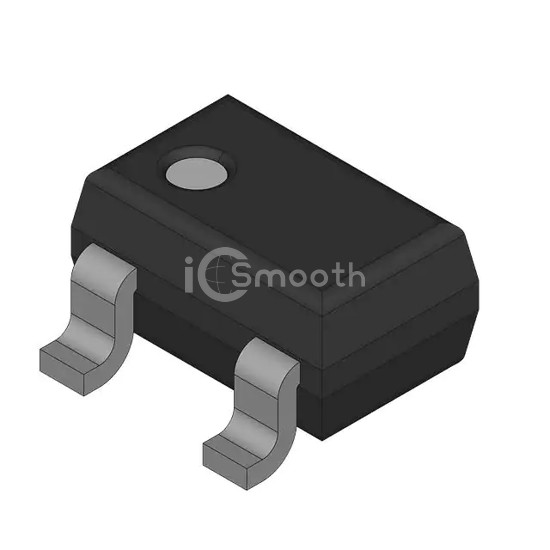

2SK1069-5-TL-E - onsemi - Transistors - JFETs
REF: 2SK1069-5-TL-E onsemi
2SK1069-5-TL-E

onsemi

LOW-FREQUENCY GENERAL-PURPOSE

2SK1069-5-TL-E is a Transistors - JFETs manufactured by onsemi. LOW-FREQUENCY GENERAL-PURPOSE. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-70, SOT-323, power - max 150 mW.

Request a Quote

In Stock: 24,000

Specifications

14 parameters
Product StatusActive
FET TypeN-Channel
Voltage - Breakdown (V(BR)GSS)40 V
Drain to Source Voltage (Vdss)40 V
Current - Drain (Idss) @ Vds (Vgs=0)-
Current Drain (Id) - Max20 mA
Voltage - Cutoff (VGS off) @ Id300 mV @ 1 µA
Input Capacitance (Ciss) (Max) @ Vds9pF @ 10V
Resistance - RDS(On)-
Power - Max150 mW
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device Package3-MCPH
