Name: 2SJ661-1E
Brand: onsemi
SKU: 2SJ661-1E
Availability: InStock

REF: 2SJ661-1E onsemi

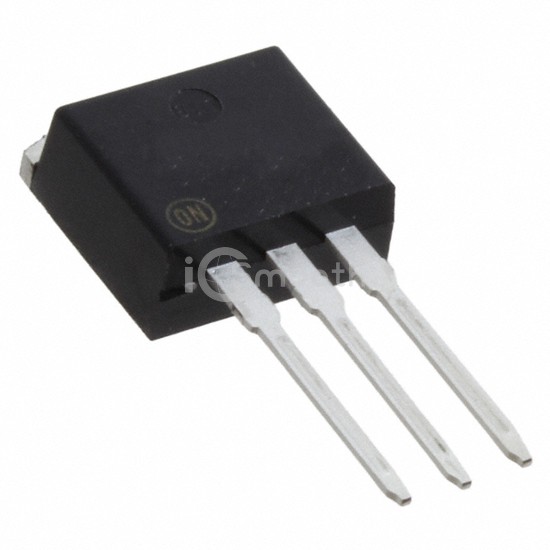

2SJ661-1E

MOSFET P-CH 60V 38A TO262-3

2SJ661-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 60V 38A TO262-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-262-3 Long Leads, I²Pak, TO-262AA.

Datasheet Request a Quote

In Stock: 1,346

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	38A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	39mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4360 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	1.65W (Ta), 65W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-262-3
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
