2SJ652-1E

In Stock: 2,461

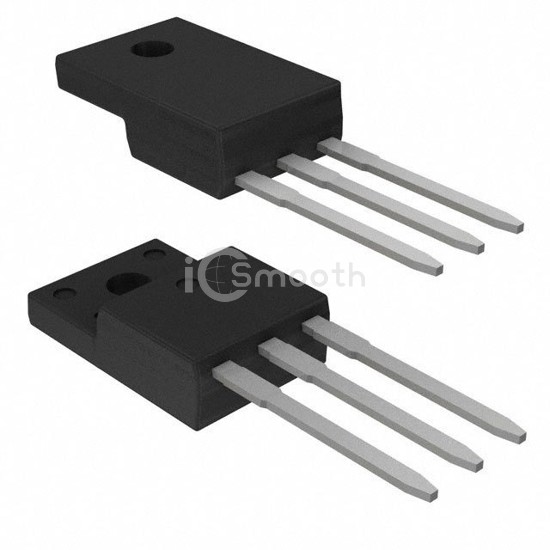

2SJ652-1E - onsemi - Transistors - FETs, MOSFETs - Single
REF: 2SJ652-1E onsemi
2SJ652-1E

onsemi

MOSFET P-CH 60V 28A TO220F-3SG

2SJ652-1E is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET P-CH 60V 28A TO220F-3SG. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Full Pack.

Datasheet Request a Quote

In Stock: 2,461

Specifications

17 parameters
Product StatusObsolete
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C28A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4V, 10V
Rds On (Max) @ Id, Vgs38mOhm @ 14A, 10V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs80 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4360 pF @ 20 V
FET Feature-
Power Dissipation (Max)2W (Ta), 30W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220F-3SG
Package / CaseTO-220-3 Full Pack
