2SD1620-TD-E

In Stock: 2,594

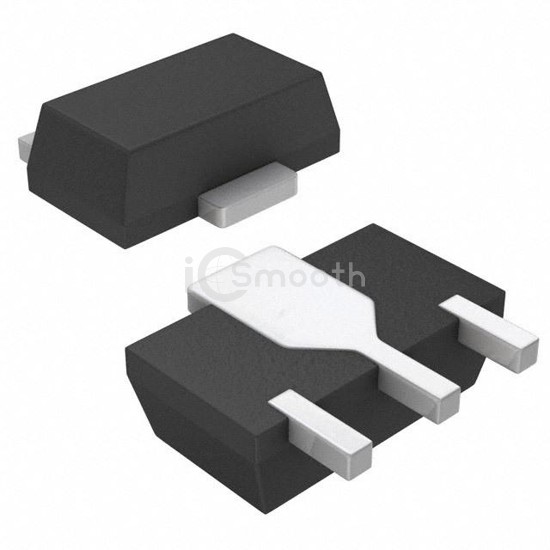

2SD1620-TD-E - onsemi - Transistors - Bipolar (BJT) - Single
REF: 2SD1620-TD-E onsemi
2SD1620-TD-E

onsemi

TRANS NPN 10V 3A PCP

2SD1620-TD-E is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 10V 3A PCP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA, current - collector (ic) (max) 3 A.

Datasheet Request a Quote

In Stock: 2,594

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)10 V
Vce Saturation (Max) @ Ib, Ic400mV @ 60mA, 3A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce140 @ 3A, 2V
Power - Max500 mW
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackagePCP
