2SC5646A-TL-H

In Stock: 7,207

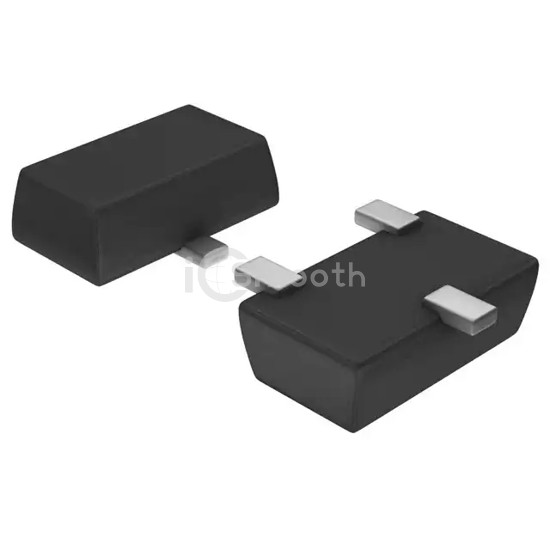

2SC5646A-TL-H - onsemi - Transistors - Bipolar (BJT) - RF
REF: 2SC5646A-TL-H onsemi
2SC5646A-TL-H

onsemi

RF TRANS NPN 4V 12.5GHZ 3SSFP

2SC5646A-TL-H is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 4V 12.5GHZ 3SSFP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-81, current - collector (ic) (max) 30mA.

Datasheet Request a Quote

In Stock: 7,207

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)4V
Frequency - Transition10GHz ~ 12.5GHz
Noise Figure (dB Typ @ f)1.5dB @ 2GHz
Gain9.5dB ~ 10.5dB @ 2GHz
Power - Max100mW
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 5mA, 1V
Current - Collector (Ic) (Max)30mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-81
Supplier Device Package3-SSFP
