2SC5569-TD-E

In Stock: 11,961

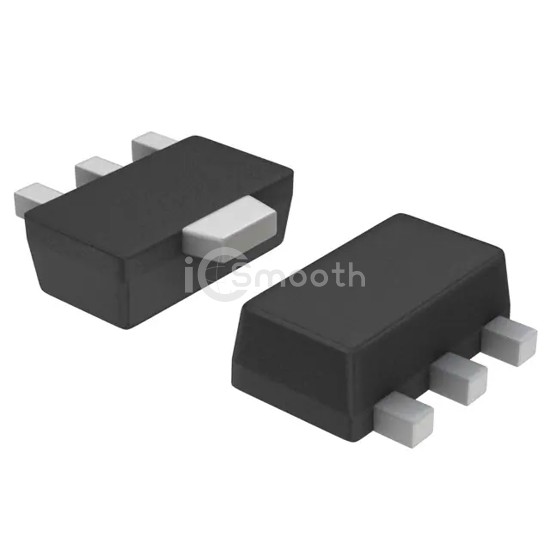

2SC5569-TD-E - onsemi - Transistors - Bipolar (BJT) - Single
REF: 2SC5569-TD-E onsemi
2SC5569-TD-E

onsemi

TRANS NPN 50V 7A SOT89/PCP-1

2SC5569-TD-E is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 50V 7A SOT89/PCP-1. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA, current - collector (ic) (max) 7 A.

Datasheet Request a Quote

In Stock: 11,961

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)7 A
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic240mV @ 175mA, 3.5A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 500mA, 2V
Power - Max1.3 W
Frequency - Transition330MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89/PCP-1
