2SC5536A-TL-H

In Stock: 15,732

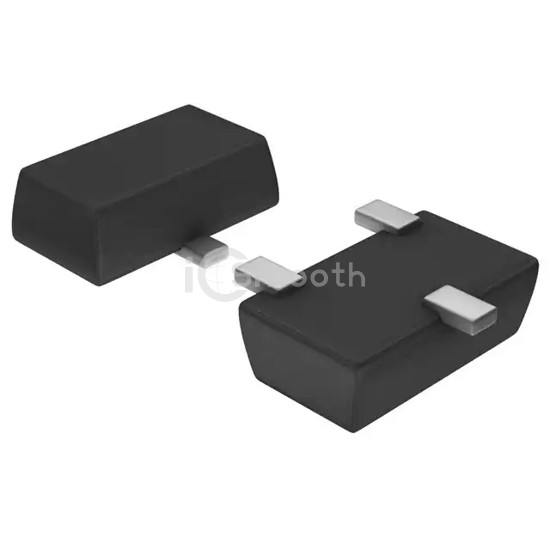

2SC5536A-TL-H - onsemi - Transistors - Bipolar (BJT) - RF
REF: 2SC5536A-TL-H onsemi
2SC5536A-TL-H

onsemi

RF TRANS NPN 12V 1.7GHZ 3SSFP

2SC5536A-TL-H is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 12V 1.7GHZ 3SSFP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-81, current - collector (ic) (max) 50mA.

Datasheet Request a Quote

In Stock: 15,732

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)12V
Frequency - Transition1.7GHz
Noise Figure (dB Typ @ f)1.8dB @ 150MHz
Gain16dB
Power - Max100mW
DC Current Gain (hFE) (Min) @ Ic, Vce80 @ 3mA, 2V
Current - Collector (Ic) (Max)50mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-81
Supplier Device Package3-SSFP
