2SC5490A-TL-H

In Stock: 1,660

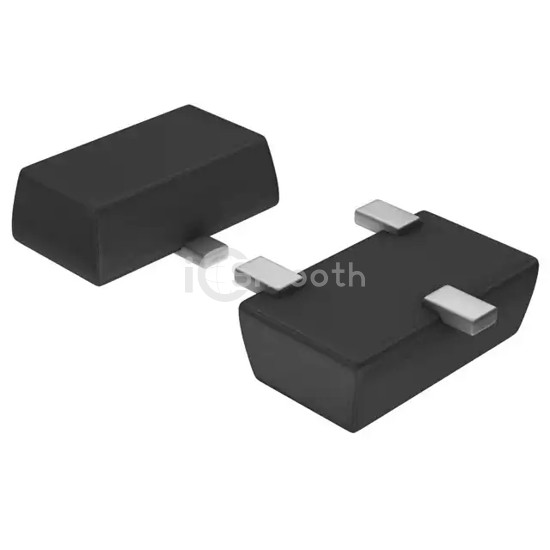

2SC5490A-TL-H - onsemi - Transistors - Bipolar (BJT) - RF
REF: 2SC5490A-TL-H onsemi
2SC5490A-TL-H

onsemi

RF TRANS NPN 10V 8GHZ 3SSFP

2SC5490A-TL-H is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 10V 8GHZ 3SSFP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-81, current - collector (ic) (max) 30mA.

Datasheet Request a Quote

In Stock: 1,660

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)10V
Frequency - Transition8GHz
Noise Figure (dB Typ @ f)1.4dB ~ 0.9dB @ 1.5GHz ~ 1GHz
Gain10dB ~ 5.5dB @ 1.5GHz
Power - Max100mW
DC Current Gain (hFE) (Min) @ Ic, Vce90 @ 10mA, 5V
Current - Collector (Ic) (Max)30mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-81
Supplier Device Package3-SSFP
