2SC5347AE-TD-E

In Stock: 1,383

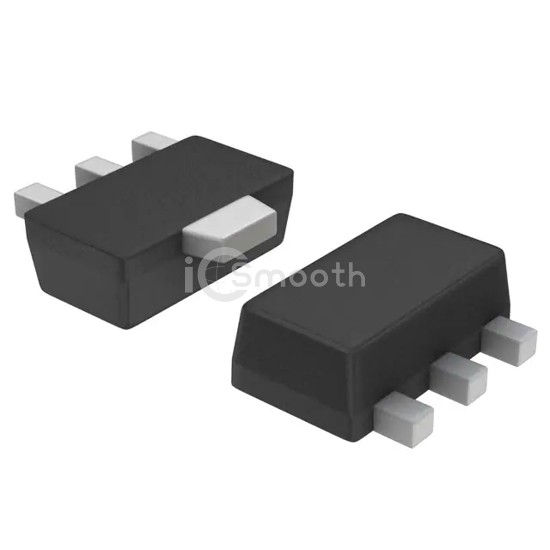

2SC5347AE-TD-E - onsemi - Transistors - Bipolar (BJT) - RF
REF: 2SC5347AE-TD-E onsemi
2SC5347AE-TD-E

onsemi

RF TRANS NPN 12V 4.7GHZ PCP

2SC5347AE-TD-E is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 12V 4.7GHZ PCP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA, current - collector (ic) (max) 150mA.

Datasheet Request a Quote

In Stock: 1,383

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)12V
Frequency - Transition4.7GHz
Noise Figure (dB Typ @ f)1.8dB @ 1GHz
Gain8dB
Power - Max1.3W
DC Current Gain (hFE) (Min) @ Ic, Vce90 @ 50mA, 5V
Current - Collector (Ic) (Max)150mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackagePCP
