2SC4482T-AN

In Stock: 20,000

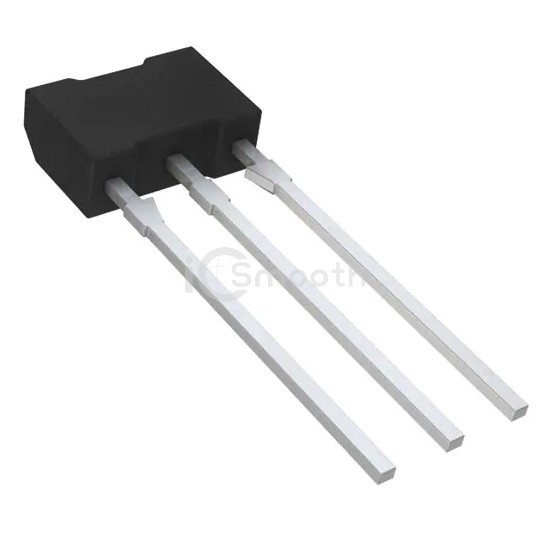

2SC4482T-AN - onsemi - Transistors - Bipolar (BJT) - Single
REF: 2SC4482T-AN onsemi
2SC4482T-AN

onsemi

TRANS NPN 20V 5A 3NMP

2SC4482T-AN is a Transistors - Bipolar (BJT) - Single manufactured by onsemi. TRANS NPN 20V 5A 3NMP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case SC-71, current - collector (ic) (max) 5 A.

Datasheet Request a Quote

In Stock: 20,000

Specifications

13 parameters
Product StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic500mV @ 60mA, 3A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 500mA, 2V
Power - Max1 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseSC-71
Supplier Device Package3-NMP
