2SA1778-3-TB-E

In Stock: 85,330

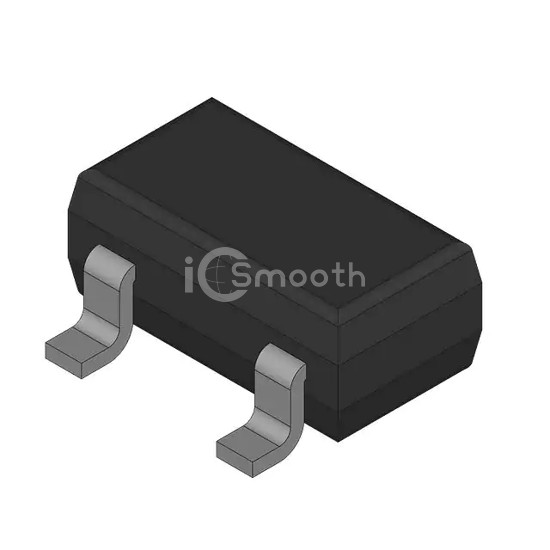

2SA1778-3-TB-E - onsemi - Transistors - Bipolar (BJT) - RF
REF: 2SA1778-3-TB-E onsemi
2SA1778-3-TB-E

onsemi

PNP TRANSISTOR

2SA1778-3-TB-E is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. PNP TRANSISTOR. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3, current - collector (ic) (max) 50mA, power - max 250mW.

Request a Quote

In Stock: 85,330

Specifications

13 parameters
Product StatusObsolete
Transistor TypePNP
Voltage - Collector Emitter Breakdown (Max)15V
Frequency - Transition1.2GHz
Noise Figure (dB Typ @ f)2.5dB @ 400MHz
Gain13dB
Power - Max250mW
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 5mA, 10V
Current - Collector (Ic) (Max)50mA
Operating Temperature-
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device Package3-CP
