2N7002T

In Stock: 6,857

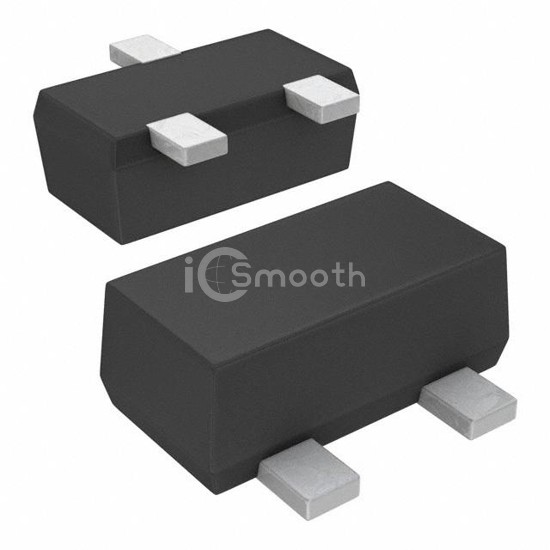

2N7002T - onsemi - Transistors - FETs, MOSFETs - Single
REF: 2N7002T onsemi
2N7002T

onsemi

MOSFET N-CH 60V 115MA SOT-523F

2N7002T is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 115MA SOT-523F. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-89, SOT-490.

Datasheet Request a Quote

In Stock: 6,857

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C115mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs7.5Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds50 pF @ 25 V
FET Feature-
Power Dissipation (Max)200mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-89-3
Package / CaseSC-89, SOT-490
