2N7002KW

In Stock: 1,251

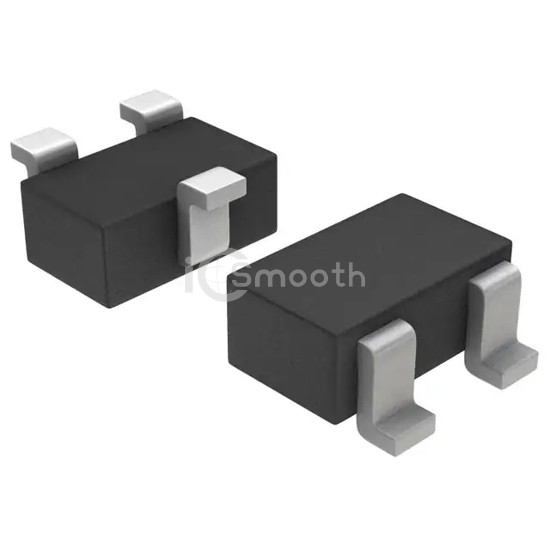

2N7002KW - onsemi - Transistors - FETs, MOSFETs - Single
REF: 2N7002KW onsemi
2N7002KW

onsemi

MOSFET N-CH 60V 310MA SC70

2N7002KW is a Transistors - FETs, MOSFETs - Single manufactured by onsemi. MOSFET N-CH 60V 310MA SC70. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 1,251

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C310mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)5V, 10V
Rds On (Max) @ Id, Vgs1.6Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds50 pF @ 25 V
FET Feature-
Power Dissipation (Max)350mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-323
Package / CaseSC-70, SOT-323
