Name: 1SMB22CAT3
Brand: onsemi
SKU: 1SMB22CAT3
Price: 0.31 USD
Availability: InStock

REF: 1SMB22CAT3 onsemi

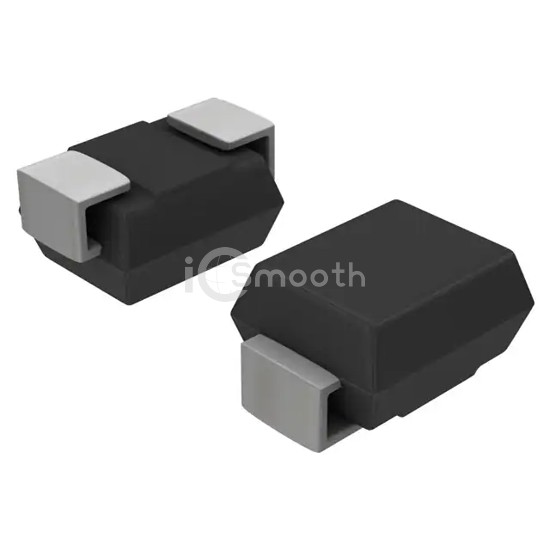

1SMB22CAT3

TVS DIODE 22VWM 35.5VC SMB

1SMB22CAT3 is a TVS - Diodes manufactured by onsemi. TVS DIODE 22VWM 35.5VC SMB. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case DO-214AA, SMB.

Datasheet Request a Quote

In Stock: 3,598

Tiered Pricing USD

2,500+ $0.3144 —

5,000+ $0.2903 -8%

7,500+ $0.2780 -12%

12,500+ $0.2642 -16%

17,500+ $0.2625 -16% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	22V
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.5V
Current - Peak Pulse (10/1000µs)	16.9A

Power - Peak Pulse	600W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	390pF @ 1MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
