15GN03MA-TL-E

In Stock: 3,729

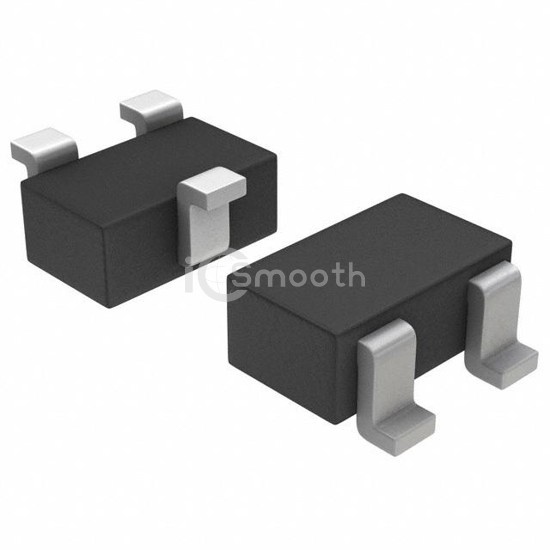

15GN03MA-TL-E - onsemi - Transistors - Bipolar (BJT) - RF
REF: 15GN03MA-TL-E onsemi
15GN03MA-TL-E

onsemi

RF TRANS NPN 10V 1.5GHZ 3MCP

15GN03MA-TL-E is a Transistors - Bipolar (BJT) - RF manufactured by onsemi. RF TRANS NPN 10V 1.5GHZ 3MCP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-70, SOT-323, current - collector (ic) (max) 70mA.

Datasheet Request a Quote

In Stock: 3,729

Specifications

13 parameters
Product StatusActive
Transistor TypeNPN
Voltage - Collector Emitter Breakdown (Max)10V
Frequency - Transition1.5GHz
Noise Figure (dB Typ @ f)1.6dB @ 0.4GHz
Gain13dB @ 0.4GHz
Power - Max400mW
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 5V
Current - Collector (Ic) (Max)70mA
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device Package3-MCP
