XC7SET32GW,125

In Stock: 137,868

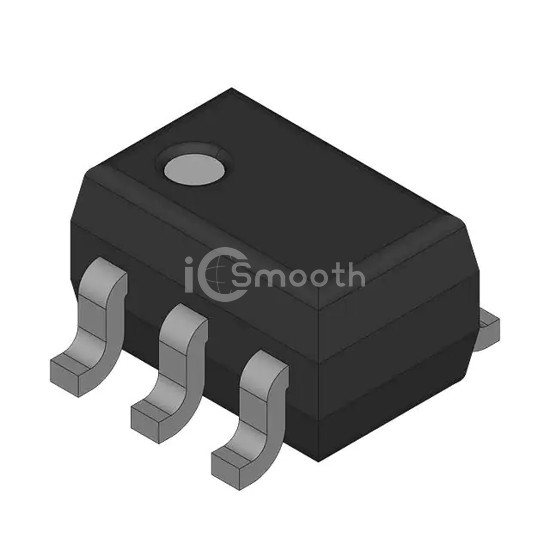

XC7SET32GW,125 - NXP USA Inc. - Logic - Gates and Inverters
REF: XC7SET32GW,125 NXP USA Inc.
XC7SET32GW,125

NXP USA Inc.

IC GATE OR 1CH 2-INP 5TSSOP

XC7SET32GW,125 is a Logic - Gates and Inverters manufactured by NXP USA Inc.. IC GATE OR 1CH 2-INP 5TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 4.5V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.

Datasheet Request a Quote

In Stock: 137,868

Tiered Pricing USD
1+ $0.4600 —
10+ $0.3200 -30%
25+ $0.2852 -38%
100+ $0.2473 -46%
250+ $0.2292 -50%
500+ $0.2184 -53%
1,000+ $0.2104 -54% BEST

Specifications

15 parameters
Product StatusActive
Logic TypeOR Gate
Number of Circuits1
Number of Inputs2
Features-
Voltage - Supply4.5V ~ 5.5V
Current - Quiescent (Max)1 µA
Current - Output High, Low8mA, 8mA
Logic Level - Low0.8V
Logic Level - High2V
Max Propagation Delay @ V, Max CL7.9ns @ 5V, 50pF
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Supplier Device Package5-TSSOP
Package / Case5-TSSOP, SC-70-5, SOT-353
