TDF8771AH/C1,518

In Stock: 5,286

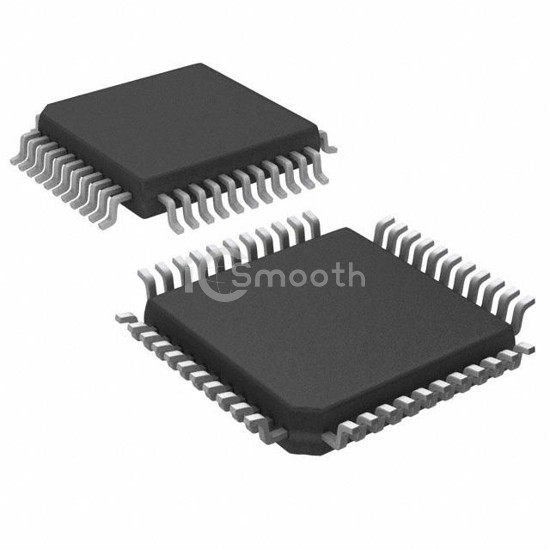

TDF8771AH/C1,518 - NXP USA Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: TDF8771AH/C1,518 NXP USA Inc.
TDF8771AH/C1,518

NXP USA Inc.

IC DAC 8BIT V-OUT 44PQFP

TDF8771AH/C1,518 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by NXP USA Inc.. IC DAC 8BIT V-OUT 44PQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 44-QFP.

Datasheet Request a Quote

In Stock: 5,286

Specifications

16 parameters
Product StatusObsolete
Number of Bits8
Number of D/A Converters3
Settling Time50µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeInternal
Voltage - Supply, Analog5V
Voltage - Supply, Digital5V
INL/DNL (LSB)±0.3, ±0.15
ArchitectureString DAC
Operating Temperature-40°C ~ 85°C
Package / Case44-QFP
Supplier Device Package44-PQFP (10x10)
Mounting TypeSurface Mount
