Name: TDA3602/N3,112
Brand: NXP USA Inc.
SKU: TDA3602/N3,112
Availability: InStock

REF: TDA3602/N3,112 NXP USA Inc.

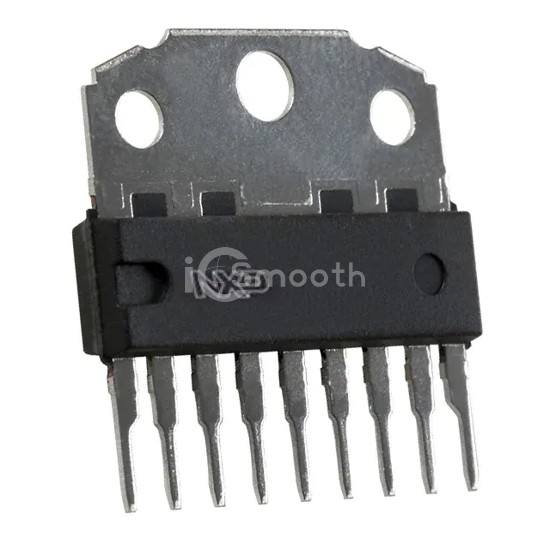

TDA3602/N3,112

IC REG LIN 8.5V/5V/5V 9-SIL MPF

TDA3602/N3,112 is a PMIC - Voltage Regulators - Linear manufactured by NXP USA Inc.. IC REG LIN 8.5V/5V/5V 9-SIL MPF. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case 9-SIP Exposed Tab, current - output 250mA, 140mA, 50mA.

Datasheet Request a Quote

In Stock: 3,843

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	3
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	8.5V, 5V, 5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.4V @ 250mA, 1.2V @ 140mA (Typ), 0.4V @ 50mA
Current - Output	250mA, 140mA, 50mA

Current - Quiescent (Iq)	360 µA
Current - Supply (Max)	-
PSRR	60dB (200Hz)
Control Features	Reset
Protection Features	Load Dump, Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 150°C
Mounting Type	Through Hole
Package / Case	9-SIP Exposed Tab
Supplier Device Package	9-SIL MPF
