S9S12XS256J0MAE

In Stock: 5,761
S9S12XS256J0MAE - NXP USA Inc. - Embedded - Microcontrollers
REF: S9S12XS256J0MAE NXP USA Inc.
S9S12XS256J0MAE

NXP USA Inc.

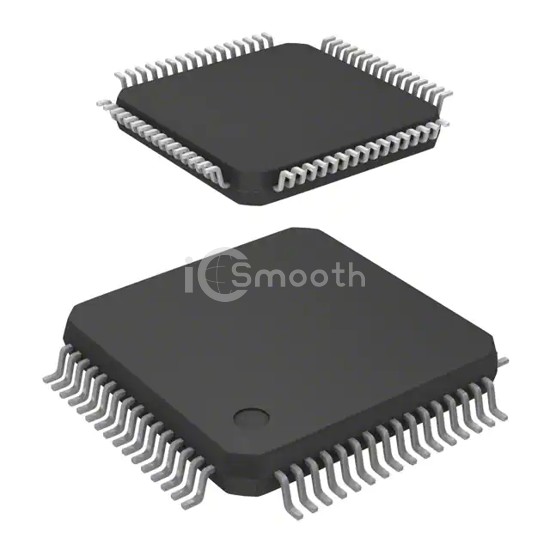

IC MCU 16BIT 256KB FLASH 64LQFP

S9S12XS256J0MAE is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 16BIT 256KB FLASH 64LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 1.72V ~ 5.5V, package / case 64-LQFP.

Datasheet Request a Quote

In Stock: 5,761

Specifications

18 parameters
Product StatusActive
Core ProcessorHCS12X
Core Size16-Bit
Speed40MHz
ConnectivityCANbus, SCI, SPI
PeripheralsLVD, POR, PWM, WDT
Number of I/O44
Program Memory Size256KB (256K x 8)
Program Memory TypeFLASH
EEPROM Size-
RAM Size12K x 8
Voltage - Supply (Vcc/Vdd)1.72V ~ 5.5V
Data ConvertersA/D 8x12b
Oscillator TypeExternal
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case64-LQFP
Supplier Device Package64-LQFP (10x10)
