Name: S9S08SG8E2CTGR,534
Brand: NXP USA Inc.
SKU: S9S08SG8E2CTGR,534
Price: 1.49 USD
Availability: InStock

REF: S9S08SG8E2CTGR,534 NXP USA Inc.

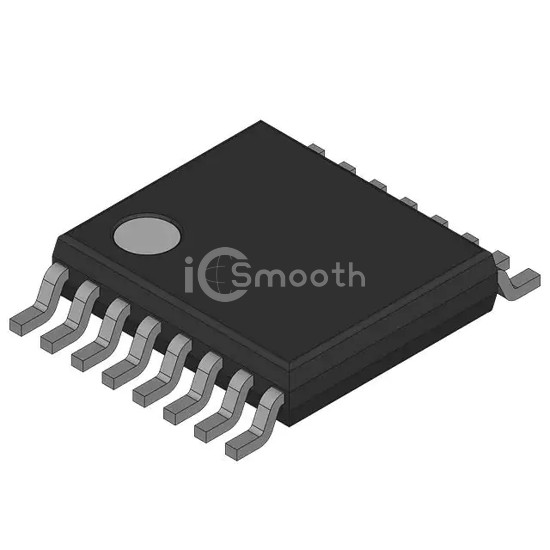

S9S08SG8E2CTGR,534

NXP USA Inc.

MICROCONTROLLER, 8 BIT, HC08/S08

S9S08SG8E2CTGR,534 is a Embedded - Microcontrollers manufactured by NXP USA Inc.. MICROCONTROLLER, 8 BIT, HC08/S08. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 16-TSSOP (0.173", 4.40mm Width).

Datasheet Request a Quote

In Stock: 4,136

Specifications

18 parameters

Product Status	Active
Core Processor	S08
Core Size	8-Bit
Speed	40MHz
Connectivity	I²C, LINbus, SCI, SPI
Peripherals	LVD, POR, PWM, WDT
Number of I/O	12
Program Memory Size	8KB (8K x 8)
Program Memory Type	FLASH

EEPROM Size	-
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	2.7V ~ 5.5V
Data Converters	A/D 8x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
