S9S08DN60F2CLHR

In Stock: 3,302

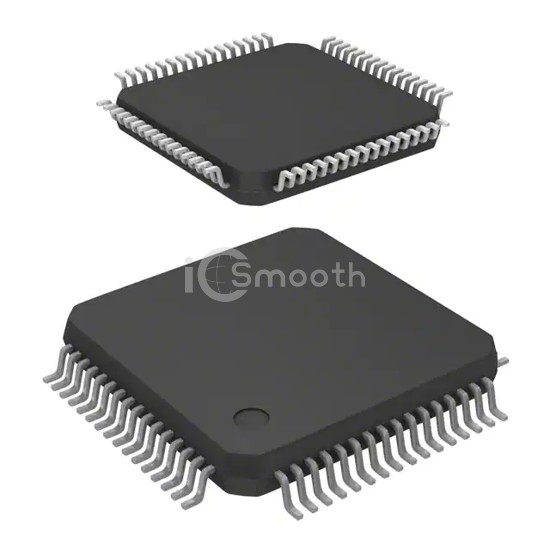

S9S08DN60F2CLHR - NXP USA Inc. - Embedded - Microcontrollers
REF: S9S08DN60F2CLHR NXP USA Inc.
S9S08DN60F2CLHR

NXP USA Inc.

IC MCU 8BIT 60KB FLASH 64LQFP

S9S08DN60F2CLHR is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 8BIT 60KB FLASH 64LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 64-LQFP.

Datasheet Request a Quote

In Stock: 3,302

Specifications

18 parameters
Product StatusActive
Core ProcessorS08
Core Size8-Bit
Speed40MHz
ConnectivityI²C, LINbus, SCI, SPI
PeripheralsLVD, POR, PWM, WDT
Number of I/O53
Program Memory Size60KB (60K x 8)
Program Memory TypeFLASH
EEPROM Size2K x 8
RAM Size2K x 8
Voltage - Supply (Vcc/Vdd)2.7V ~ 5.5V
Data ConvertersA/D 16x12b
Oscillator TypeInternal
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case64-LQFP
Supplier Device Package64-LQFP (10x10)
