S9S08AW48E5VFDE

In Stock: 4,742

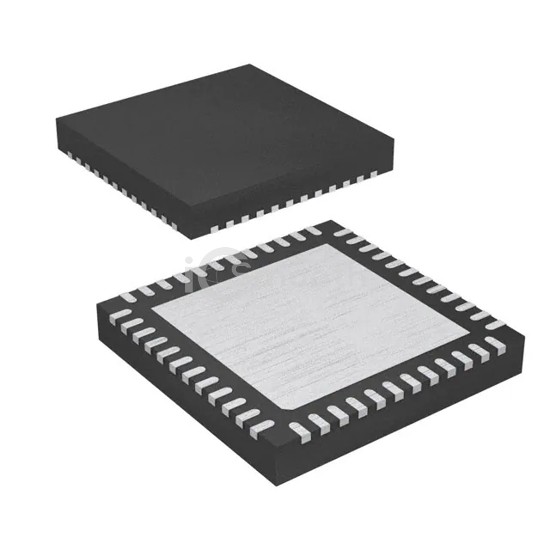

S9S08AW48E5VFDE - NXP USA Inc. - Embedded - Microcontrollers
REF: S9S08AW48E5VFDE NXP USA Inc.
S9S08AW48E5VFDE

NXP USA Inc.

IC MCU 8BIT 48KB FLASH 48QFN

S9S08AW48E5VFDE is a Embedded - Microcontrollers manufactured by NXP USA Inc.. IC MCU 8BIT 48KB FLASH 48QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 48-VFQFN Exposed Pad.

Request a Quote

In Stock: 4,742

Specifications

18 parameters
Product StatusActive
Core ProcessorS08
Core Size8-Bit
Speed40MHz
ConnectivityI²C, SCI, SPI
PeripheralsLVD, POR, PWM, WDT
Number of I/O38
Program Memory Size48KB (48K x 8)
Program Memory TypeFLASH
EEPROM Size-
RAM Size2K x 8
Voltage - Supply (Vcc/Vdd)2.7V ~ 5.5V
Data ConvertersA/D 8x10b
Oscillator TypeInternal
Operating Temperature-40°C ~ 105°C (TA)
Mounting TypeSurface Mount
Package / Case48-VFQFN Exposed Pad
Supplier Device Package48-QFN-EP (7x7)
