Name: PTN36502AHQX
Brand: NXP USA Inc.
SKU: PTN36502AHQX
Price: 4.64 USD
Availability: InStock

REF: PTN36502AHQX NXP USA Inc.

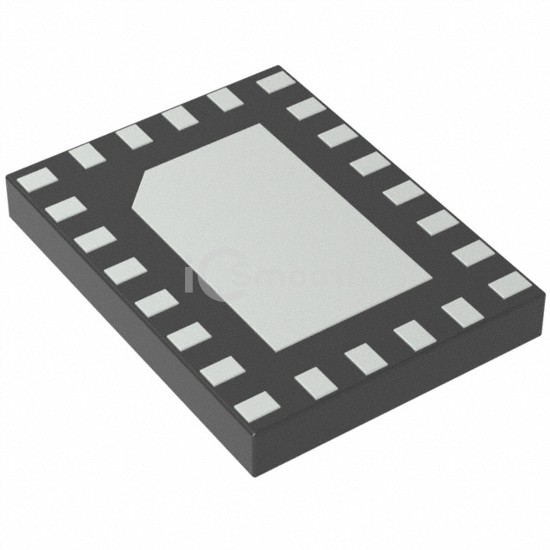

PTN36502AHQX

IC REDRIVER USB 3.1 & DP 1.2 QFN

PTN36502AHQX is a Interface - Signal Buffers, Repeaters, Splitters manufactured by NXP USA Inc.. IC REDRIVER USB 3.1 & DP 1.2 QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.7V ~ 1.9V, package / case 24-XFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,870

Tiered Pricing USD

1+ $4.6400 —

10+ $3.5260 -24%

25+ $3.2472 -30%

100+ $2.9411 -37%

250+ $2.7952 -40%

500+ $2.7072 -42%

1,000+ $2.6348 -43% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	Buffer, ReDriver
Applications	USB Type C
Input	Differential
Output	Differential
Data Rate (Max)	5.4Gbps
Number of Channels	-
Delay Time	140ps

Signal Conditioning	Input Equalization, Output De-Emphasis
Capacitance - Input	10 pF
Voltage - Supply	1.7V ~ 1.9V
Current - Supply	225mA
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	24-XFQFN Exposed Pad
Supplier Device Package	24-HX2QFN (2.4x3.2)
