PDTC114TEF,115

In Stock: 7,649

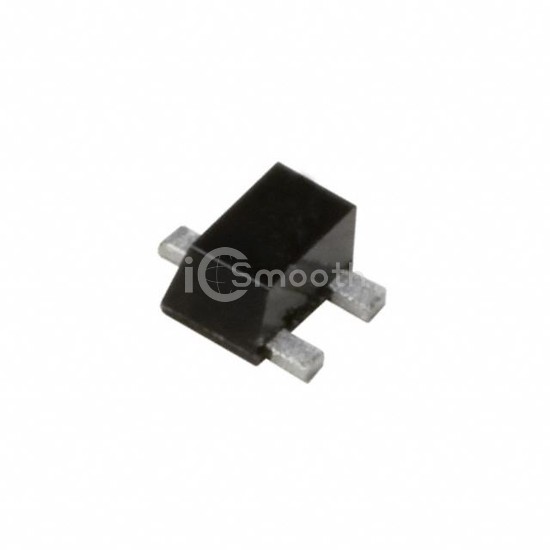

PDTC114TEF,115 - NXP USA Inc. - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: PDTC114TEF,115 NXP USA Inc.
PDTC114TEF,115

NXP USA Inc.

TRANS PREBIAS NPN 150MW SC89

PDTC114TEF,115 is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by NXP USA Inc.. TRANS PREBIAS NPN 150MW SC89. Key specifications: mounting type Surface Mount, package / case SC-89, SOT-490, current - collector (ic) (max) 100 mA, power - max 150 mW.

Datasheet Request a Quote

In Stock: 7,649

Specifications

14 parameters
Product StatusObsolete
Transistor TypeNPN - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)10 kOhms
Resistor - Emitter Base (R2)-
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 1mA, 5V
Vce Saturation (Max) @ Ib, Ic150mV @ 500µA, 10mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition-
Power - Max150 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSC-89
