PDTA143ZEF,115

In Stock: 2,091

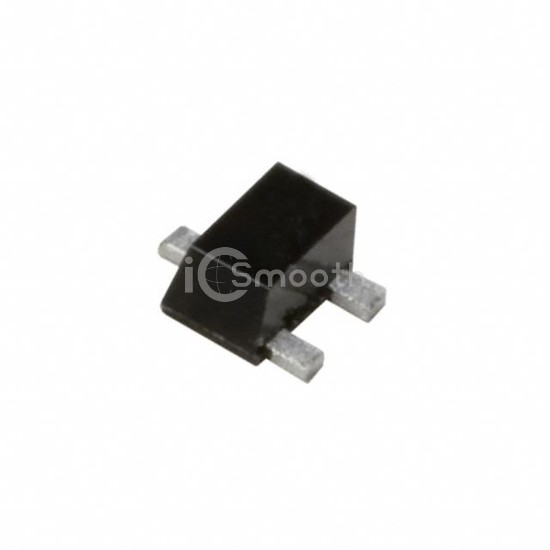

PDTA143ZEF,115 - NXP USA Inc. - Transistors - Bipolar (BJT) - Single, Pre-Biased
REF: PDTA143ZEF,115 NXP USA Inc.
PDTA143ZEF,115

NXP USA Inc.

TRANS PREBIAS PNP 250MW SC89

PDTA143ZEF,115 is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by NXP USA Inc.. TRANS PREBIAS PNP 250MW SC89. Key specifications: mounting type Surface Mount, package / case SC-89, SOT-490, current - collector (ic) (max) 100 mA, power - max 250 mW.

Datasheet Request a Quote

In Stock: 2,091

Specifications

14 parameters
Product StatusObsolete
Transistor TypePNP - Pre-Biased
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Resistor - Base (R1)4.7 kOhms
Resistor - Emitter Base (R2)47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic100mV @ 250µA, 5mA
Current - Collector Cutoff (Max)1µA
Frequency - Transition-
Power - Max250 mW
Mounting TypeSurface Mount
Package / CaseSC-89, SOT-490
Supplier Device PackageSC-89
